Fixed Extruded Drainable

Select a product from the menu on the left or filter your search below. Note that none of the filter options are required.
Price




Special performance considerations:

Model SP717 – 7 Inch Storm Performance Louvers

Storm Performance Louvers provide optimum performance against the elements. They have been specifically designed and tested to prevent infiltration of wind driven rain while allowing maximum airflow through the unit. Depth is 7″ (177.8mm). As with all of our products, they are made in the USA.

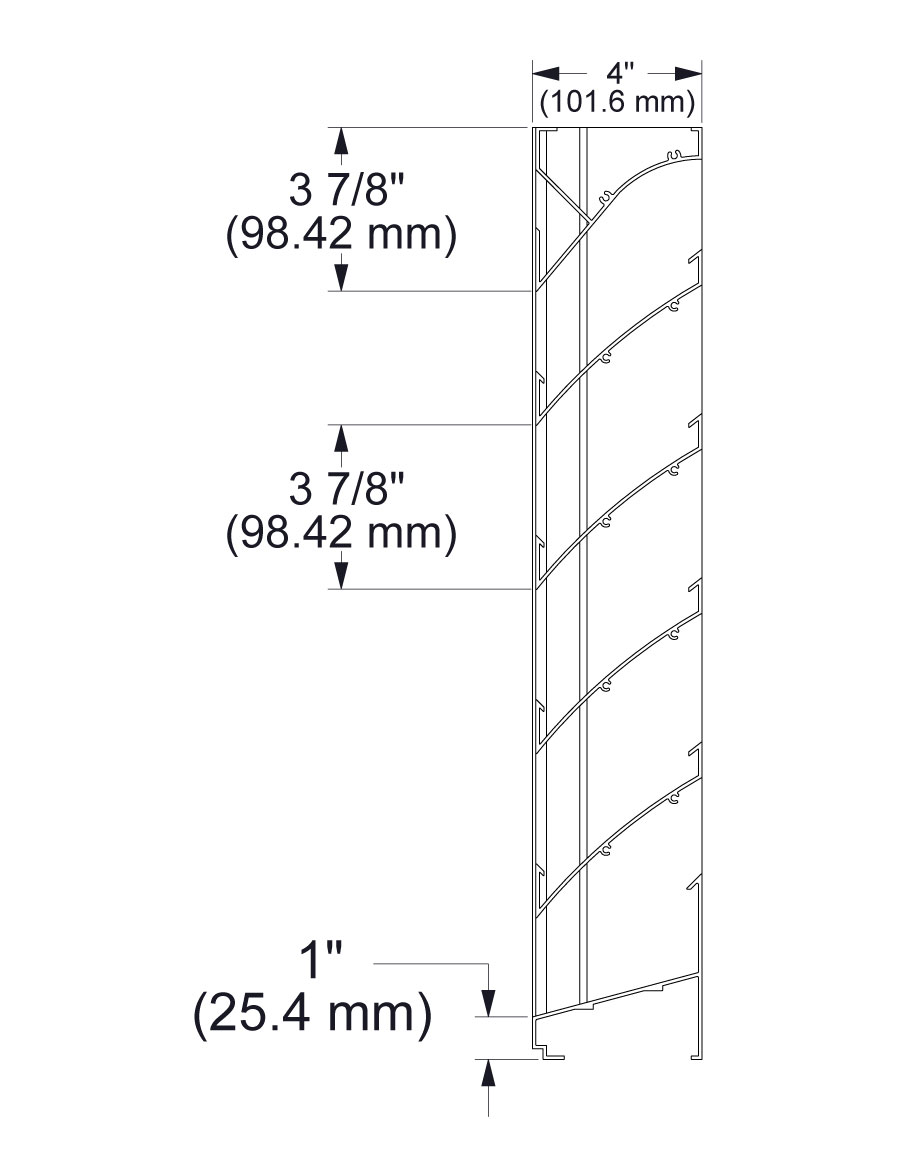

Model 458XP | 4 Inch Fixed Extruded Drainable Louvers

These louvers have fixed, drainable blades to provide excellent ventilation while keeping elements out. Drainable blades utilize a gutter on the front of the blade that funnels water to the jamb and away from the building opening. AMCA certified test data ensures performance. Depth is 4″ (101.6mm).  As with all of our products, they are made in the USA.

Model 652DD | 6 Inch Fixed Extruded Drainable Louvers

These louvers have fixed, drainable blades to provide excellent ventilation while keeping elements out. Drainable blades utilize double gutters on the blade to funnel water to jamb and away from the building opening. Depth is 6″ (152.4mm). As with all of our products, they are made in the USA.

MODEL 653XP | 6 Inch Fixed Extruded Drainable Louvers

These louvers have fixed drainable blades to provide excellent ventilation while keeping elements out. Drainable blades utilize a gutter on the front of the blade that funnels water to jamb and away from the building opening. AMCA certified test data ensures performance. Depth is 6″ (152.4mm). As with all of our products, they are made in the USA.

MODEL 658XP | Fixed Drainable Extruded Aluminum Louvers

These louvers have fixed, drainable blades to provide excellent ventilation while keeping elements out.  Drainable blades utilize a gutter on the front of the blade that funnels water to jamb and away from the building opening.  AMCA certified test data ensures performance.  Depth is 6″ (152.4mm).  As with all of our products, they are made in the USA.

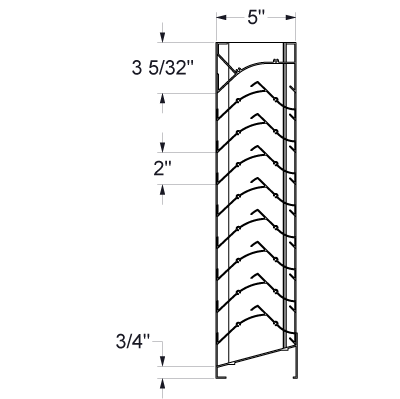

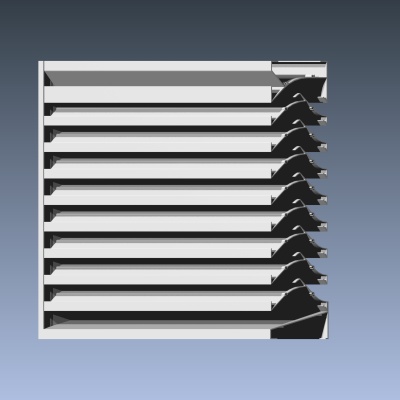

Model 537XP | 5 Inch Extruded Sightproof Louvers

These fixed, drainable louvers provide excellent ventilation while sightproof blades block views for increased security or to hide unsightly equipment. Depth is 5″ (127mm). As with all of our products, they are made in the U.S.A.

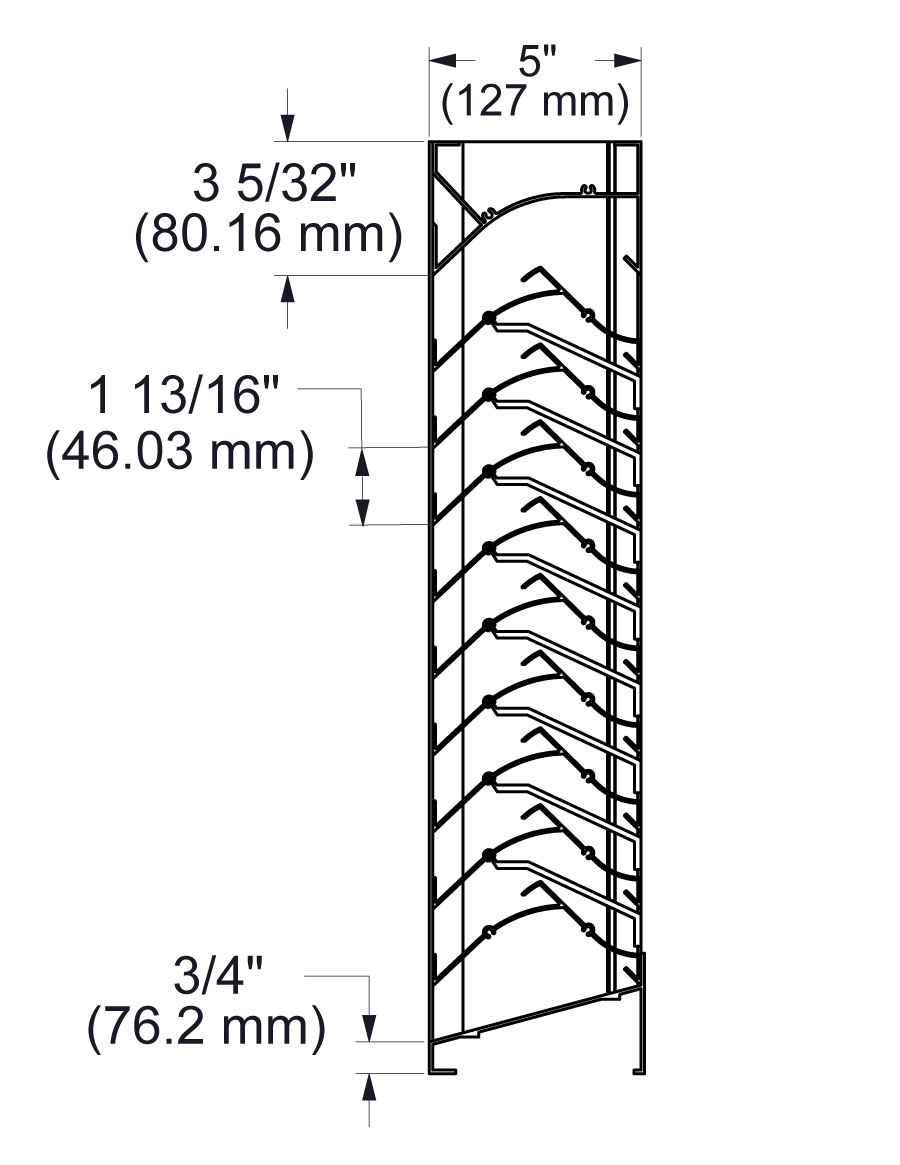

Model SP537 | 5 Inch Storm Performance Louvers

Storm Performance Louvers provide optimum performance against the elements. They have been specifically designed and tested to prevent infiltration of wind driven rain while allowing maximum airflow through the unit. Depth is 5″ (127mm). Performance data is certified by AMCA. As with all of our products, they are made in the USA.

Model SP737 | 7 Inch Storm Performance Louvers

Storm Performance Louvers provide optimum performance against the elements. They have been specifically designed and tested to prevent infiltration of wind driven rain while allowing maximum airflow through the unit.  Depth is 7″ (177.8mm). Performance data is certified by AMCA. As with all of our products, they are made in the USA.

Model SP537DC | 5 Inch Hurricane Louvers, Florida Approved

Hurricane louvers provide the ultimate in storm protection that is pre-engineered to allow for ease of selection and simplified installation. Dade County approval ensures performance to Florida standards, but these are a good choice in any area where extreme weather is an issue. Depth is 5″ (127mm). As with all of our products, they are made in the USA.

Model 653XPDC | 6 Inch Hurricane/Florida Approved Louvers

Hurricane louvers provide the ultimate in storm protection that is pre-engineered to allow for ease of selection and simplified installation. Dade County approval ensures performance to Florida standards, but are a good choice in any area where extreme weather is an issue. Depth is 6″ (152.4mm). As with all of our products, they are made in the USA.

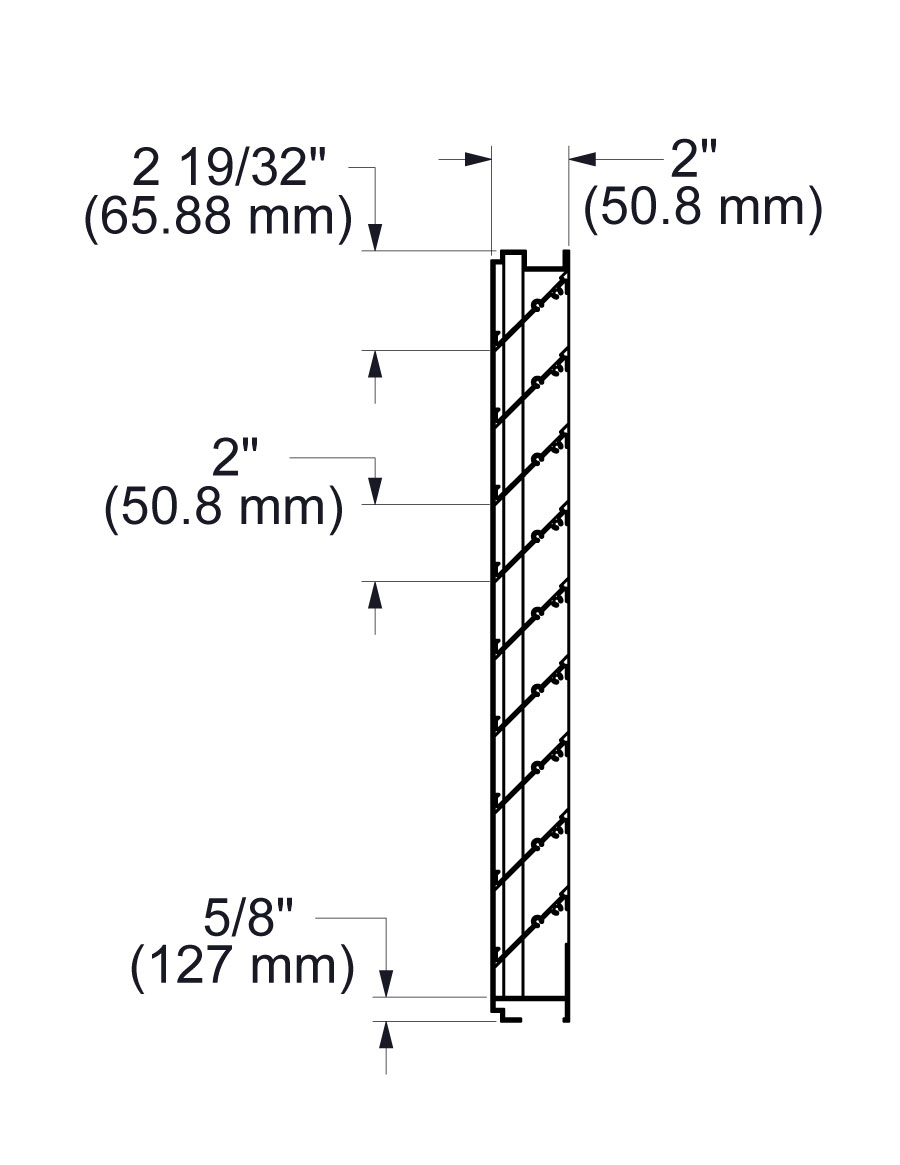

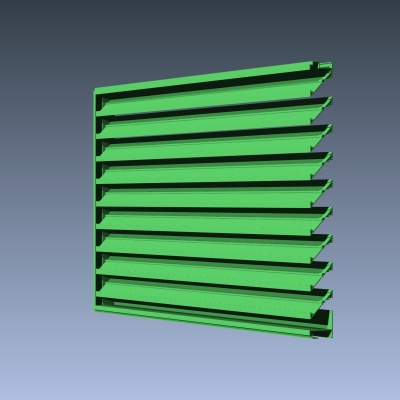

Model 258 | Thinline Louvers

Model 258 thinline, fixed, drainable louver provides a solution ideal for curtainwall, storefront and glazing applications. Drainable blades provide excellent ventilation while keeping elements out. AMCA certified test data ensures performance. Depth is 2″ (50.3mm). As with all of our products, they are made in the USA.
